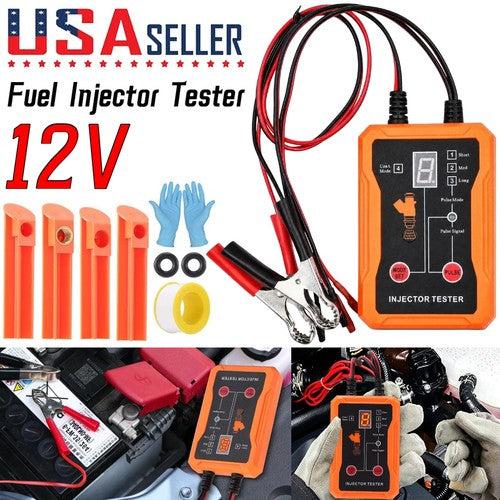

🔥Limited-time discount of 50%🔥Universal Fuel Injector Tester🚗

🔧The ultimate tool for efficient car repair – a professional fuel injector tester, easily detects fuel injection problems!🔧

🚗Accurately diagnose fuel injector status without disassembling the engine: Supports short, medium, and long pulse modes, simulating real-world operating conditions to test the smoothness and atomization effect of fuel injection, easily identifying problems such as blockages and leaks.🚗

Product Feature

• ✨4 Pulse Modes:The injector Tester comes with an LED display and 4 pulse modes - Single / Short / Long/ Continuous modes. It can help you identify whether the injector is good or not when you switch off the engine.

• ✨Easy to Use:You can use it to test each injector individually to help identify stuck, leaking or burnt-out conditions. It works with the engine off and a pulse timer may be used with a fuel pressure gauge.

• ✨The mode lock feature ensures test condition uniformity.

• ✨Use a 12V vehicle battery as a power supply.
• ✨NOTE: Gasoline cars only, NOT for diesel engines.

How to Use

• Operating Instruction:
• 1️⃣ Turns off the engine of the car
• 2️⃣ Remove the wire plug with the fuel injector to be tested, and then connect the two pulse output terminals of the instrument with the fuel injector of the vehicle.
• 3️⃣ Connect the red clip of the instrument to the positive pole of the 12 V automobile battery, and connect the black lip of the instrument to the negative pole of the battery.
• 4️⃣ Press the “Mode set ” key to select the required pulse signal output mode, and the screen will display the currently selected mode.
• 5️⃣ After selecting the required pulse signal output mode, press the “Pulse ” key, the instrument will output pulse to the fuel injector to be tested, and the signal indicator will be on when the pulse is output.
• 6️⃣ After the test is completed, if it is necessary to repeat the test, press the “ Pulse ” key; if you want to change the pulse, press the “ Reset ” key, you can select the required mode at will, and then test the fuel injector again.

Others

• The different models are explained as follows

• ⭐ Mode “0”: Standby state, no output

• ⭐ Mode “1”: Single Pulse Low Power Mode: when the PULSE key is pressed, the injector tester will send out a pulse with a pulse width of about 255 milliseconds.

• ⭐ Mode “2”: Short Pulse Low Power Mode: the injector tester will send out 50 pulses with a pulse width of about 7 milliseconds.

• ⭐ Mode “3”: Long Pulse Low Power Mode: the injector cleaner tester will send out 100 pulses, and the pulse width is about 3.5 milliseconds.

• ⭐ Mode “4”: Continuous Pulse Low Power Mode: the injector tester will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds.

• ⭐ Mode “5”: Single Pulse High Power Mode: the injector tester will send out a pulse with a pulse width of about 255 milliseconds.

• ⭐ Mode “6”: Short Pulse High Power Mode: the injector tester will send out 50 pulses with a pulse width of about 7 milliseconds.

• ⭐ Mode “7”: Long Pulse High Power Mode: the injector cleaner tester will send out 100 pulses, and the pulse width is about 3.5 milliseconds.

• ⭐ Mode “8”: Continuous Pulse High Power Mode: the injector tester will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds.

  Note: During the pulse output period, the MODE SET button is invalid, and the working mode can only be selected by pressing the PULSE button again to terminate the output.

Note

• 1. Before using this fuel injector tester, the engine of the car must be turned off.

• 2. Do not smoke or ignite near the car.

• 3. Do not splash the fuel of the car on the hot engine parts.

• 4. Only use this injector tester in a ventilated place. Do not inhale exhaust fumes from vehicles and vapours.

• 5. Do not get close to any rotating (or moving) parts of the car, and do not touch any heat-generating parts of the car.

• 6. Do not short-circuit the positive and negative poles of the car battery.

• 7. Do not touch any car parts with dangerous voltage.

• 8. Always follow the warnings, cautions and related maintenance instructions in the vehicle maintenance manual.

• 9. Wear qualified goggles.

• 10. After the test is complete, all disconnected vehicle connections should be properly restored.

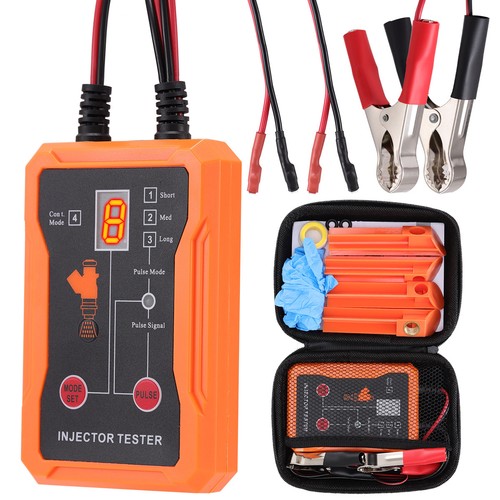

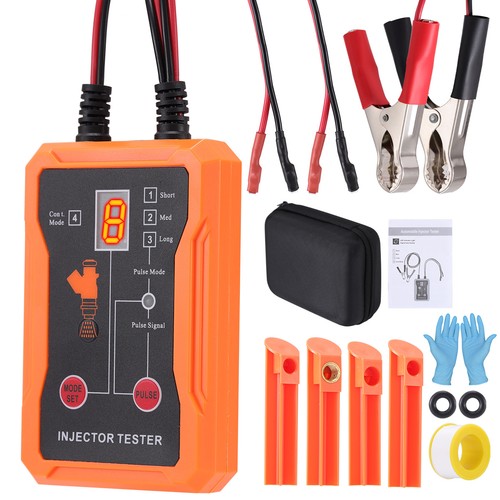

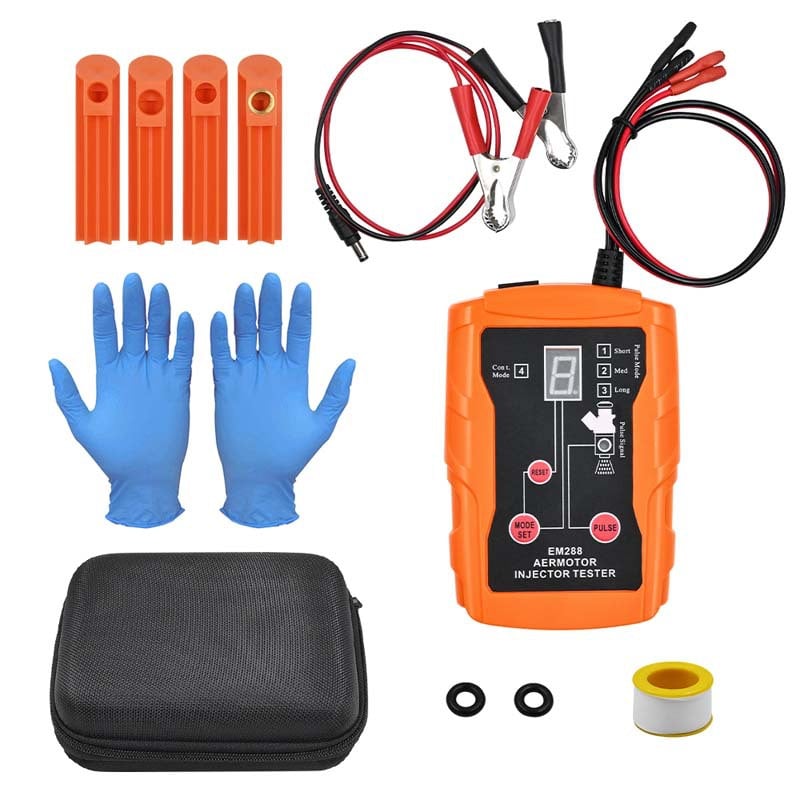

Package Included

• 1* Fuel Injecter Tester
• 1* Power Clamps
• 4* Cleaning Adapters
• 1* Storage Bag
• 1* User Manual
• 1* Working Glovees & Leak Proof Tape
